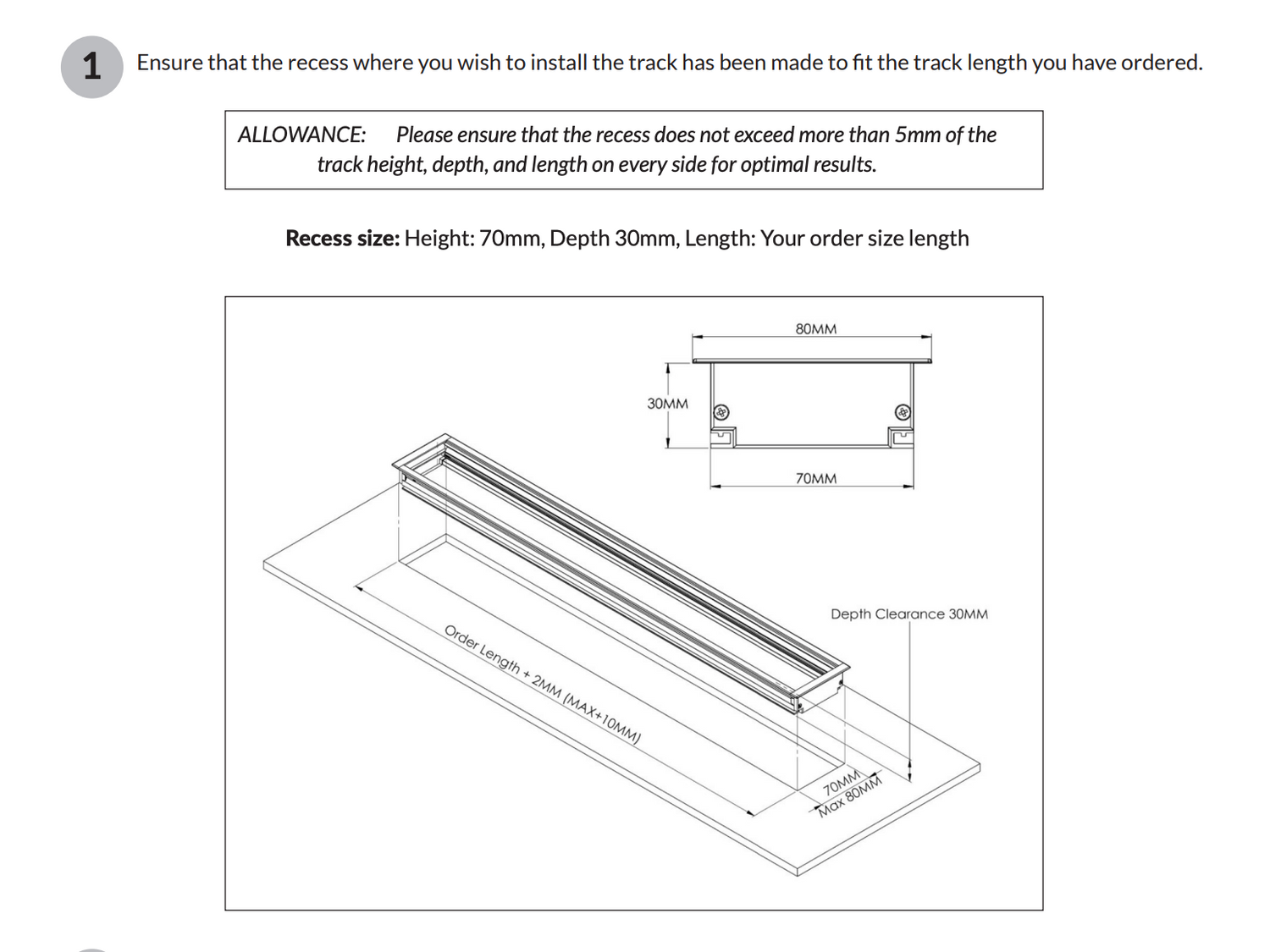

When ordering a recessed Line8 power track, please measure the internal length of the recess (the hole) in your joinery or wall.

Each recessed track has a 5mm wing/lip on both left and right ends (total +10mm).

This lip sits on top of the cabinetry surface, while the inner track body slides into the recess.

👉 We will custom-cut your power track based on the inner recess length.

You do not need to adjust for the 5mm wings — we handle that.

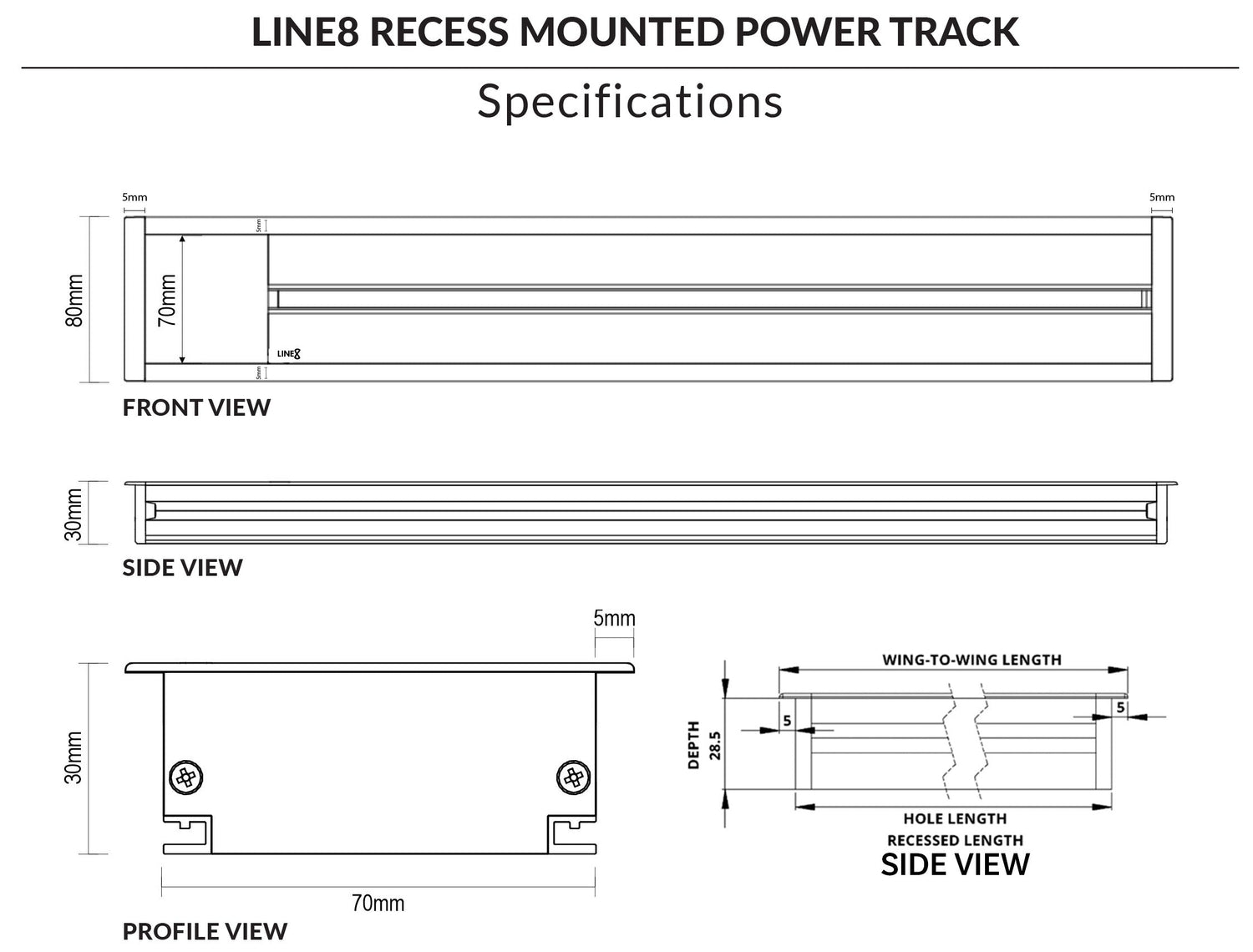

Line8 Recessed Track Inner Dimensions:

Height - 70mm

Depth - 30mm

Length - Your Order Length = the inner length of your recess (hole)

*If you are planning to include multimedia modules in the recessed track, more depth needs to be catered for the recess space.
